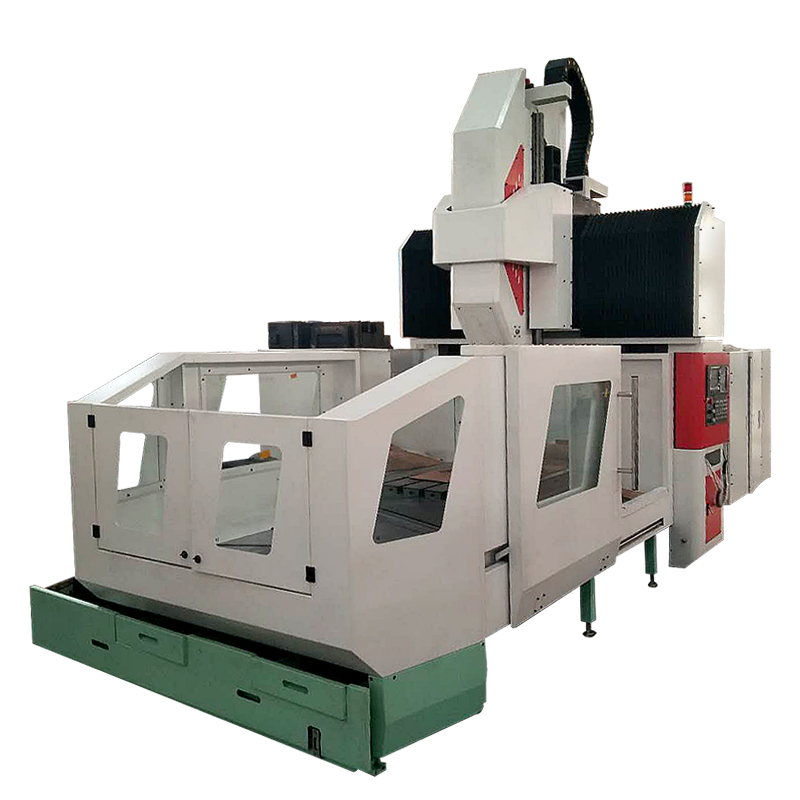

GL2016數控龍門加工中心技術參數：
| Specifications | Units | GL2016 |
| 工作臺尺寸Table size | mm | 2000x1300 |
| X軸行程X axis travel | mm | 2000 |
| Y軸行程Y axis travel | mm | 1600 |
| Z軸行程Z axis travel | mm | 700 |
| 工作臺承重Max. worktable load | kg | 2500 |
| T型槽（數量-寬度-間隙） | 5-18x140 | |
| T slot(number-width-pitch) | ||
| 主軸轉速M(fèi)ax. spindle speed | rpm | 8000 |
| 主軸錐度Spindle taper | mm | BT40 (Optional:BT50 ) |
| 主電機功率Main motor power | kw | 11 |
| X/Y/Z軸快移速度 | m/min | 2012/12/12 |
| X/Y/Z rapid traverse speed | ||
| 切削進給速度Cutting feed speed | mm/min | 1-10000 |
| 導軌形式Guide rail type | Linear rail | |
| 主軸中心到立柱表面距離 | mm | 406.5 |
| Distance from spindle axis to column surface | ||
| 主軸端部到工作臺表面距離 | mm | 100-800 |
| Distance between spindle nose and worktable surface | ||
| 定位精度Positioning accuracy | mm | ±0.005 |
| 重復定位精度Repeat positioning accuracy | mm | ±0.004 |
| 刀庫Tool magazine | Arm24 | |
| 刀具直徑Max. tool diameter | mm | φ78 (Adjacent)/ φ120(Apart) |
| Optional: φ112 (Adjacent)/ φ200(Apart) | ||
| 刀具重量Max.tool weight | kg | 8 (Optional: 18) |
| 機床重量Machine weight | kg | 13000 |
| 外形尺寸Overall dimension | mm | 4500x3000x3600 |
